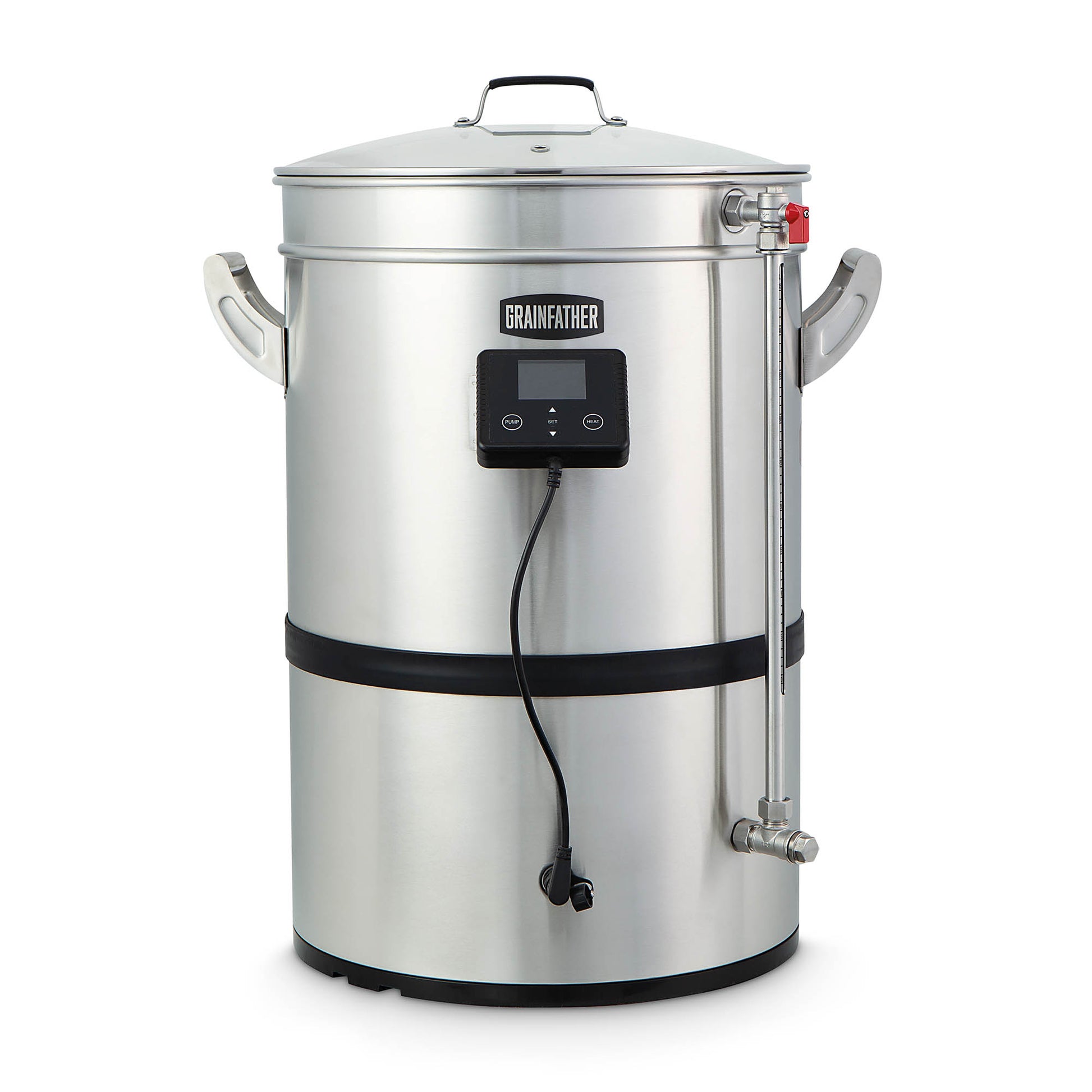

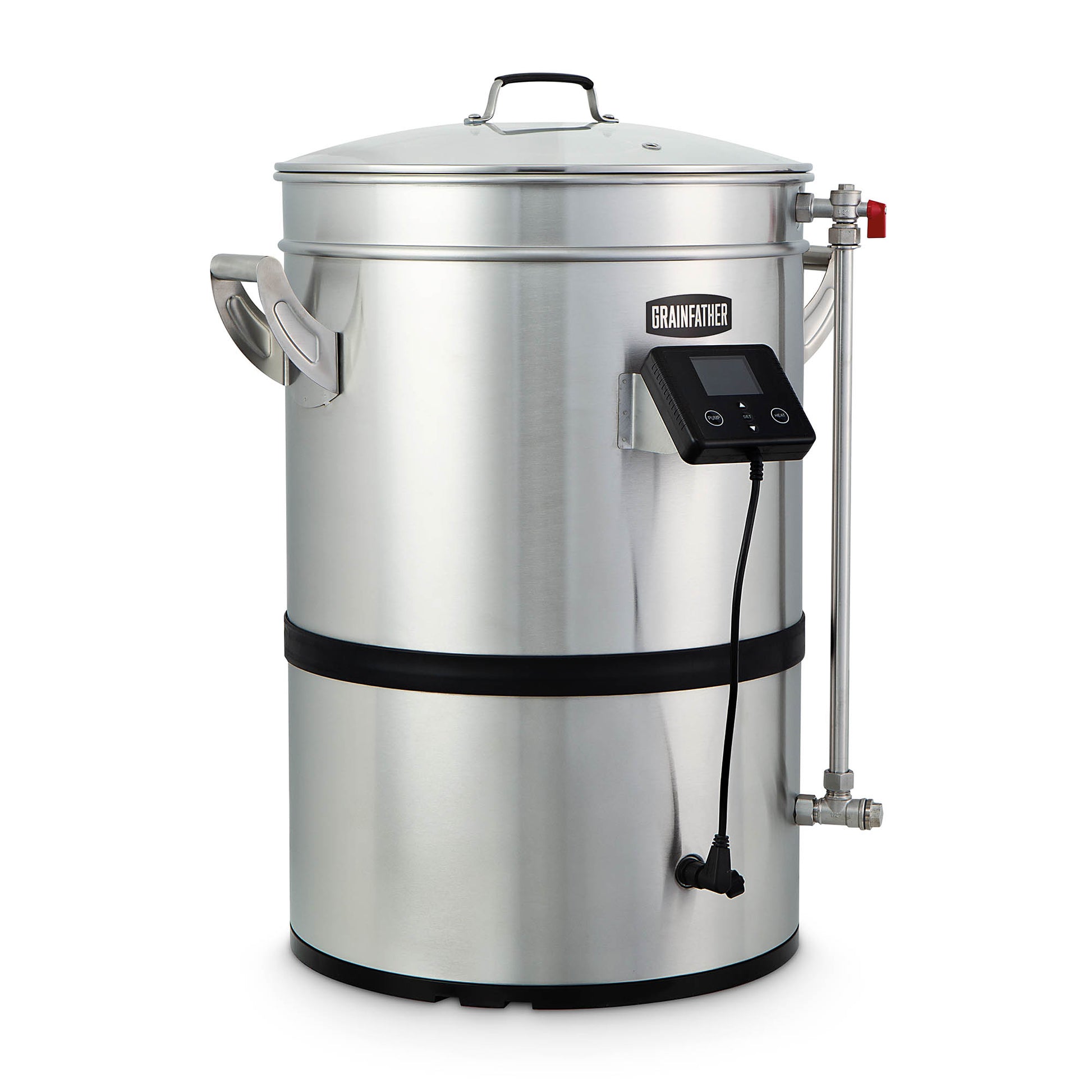

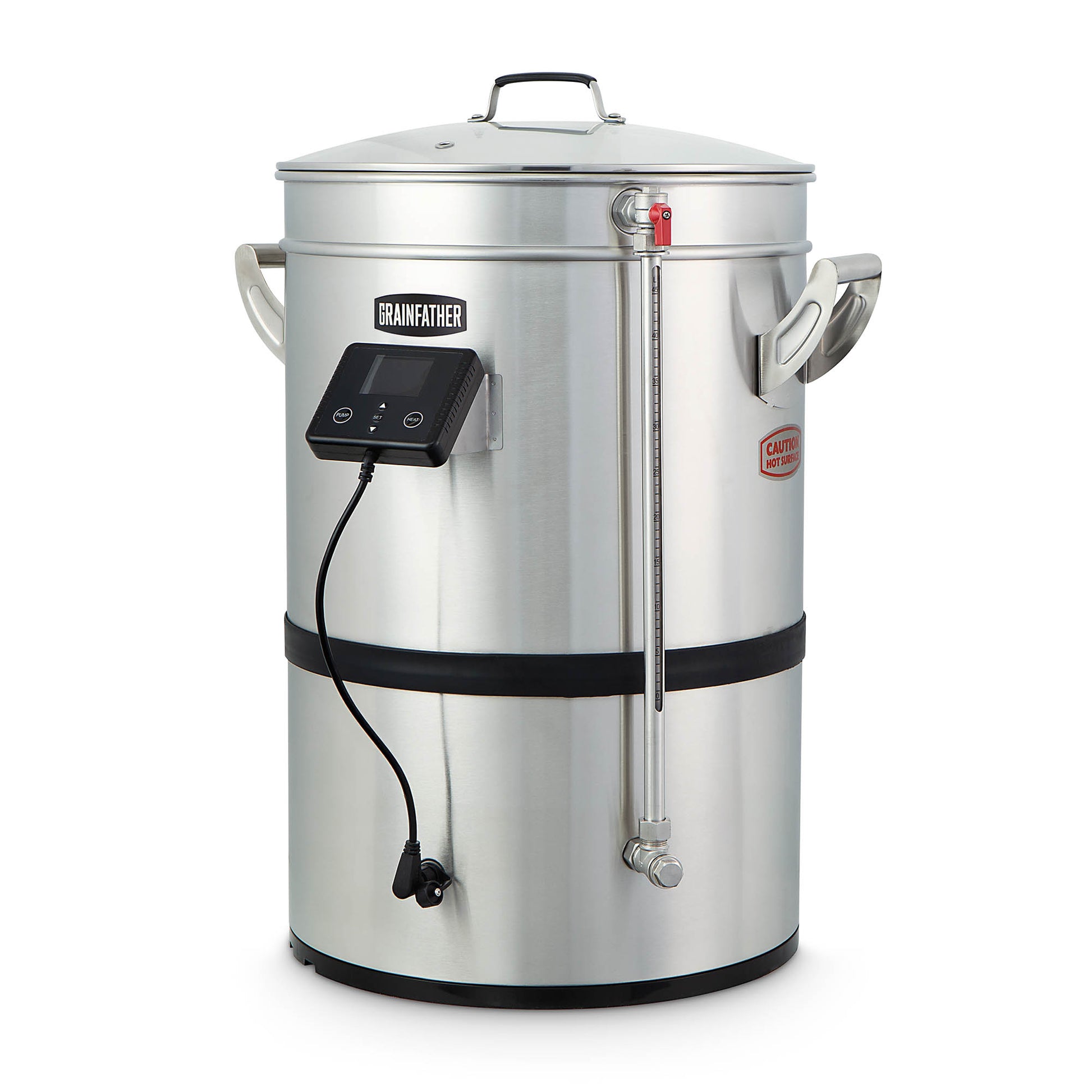

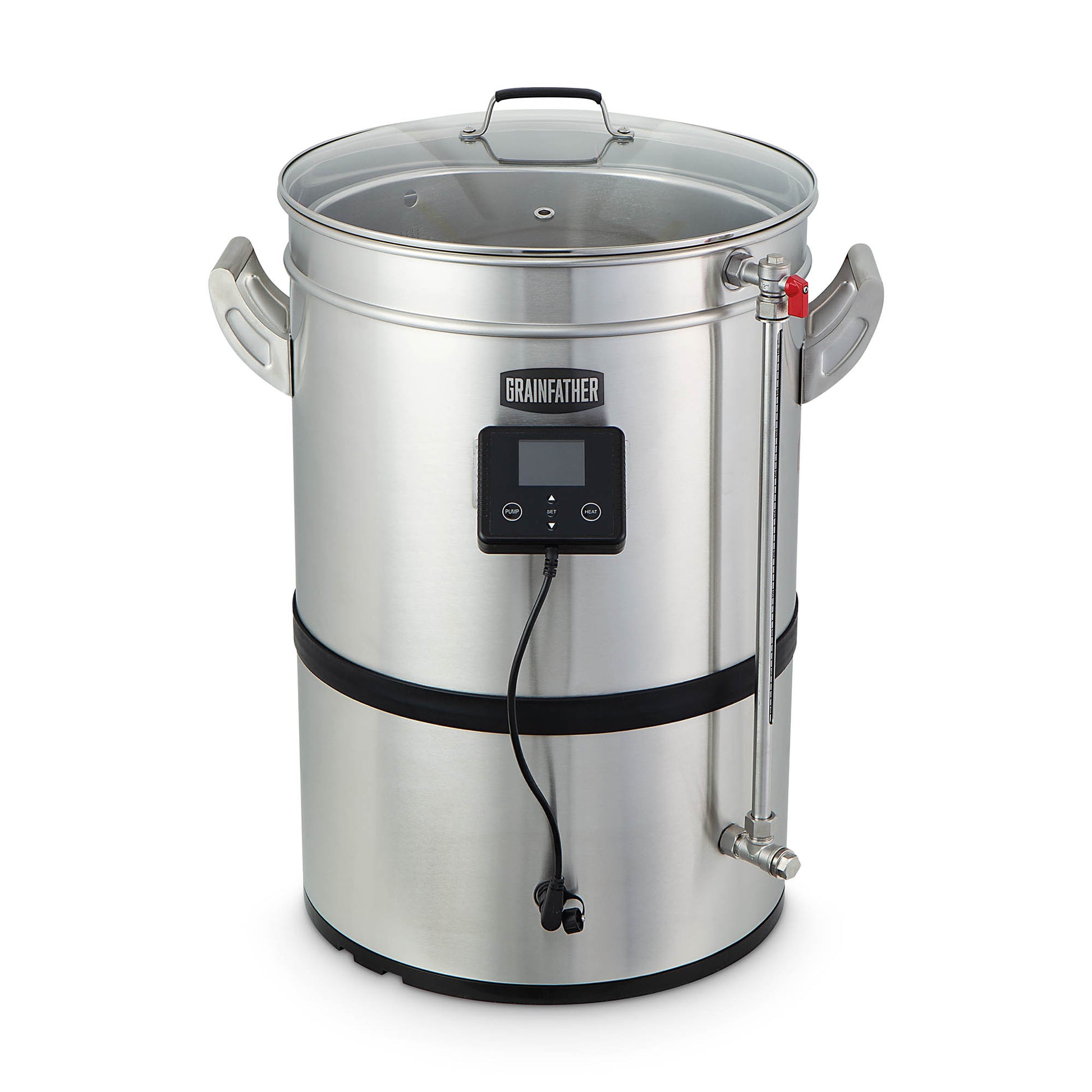

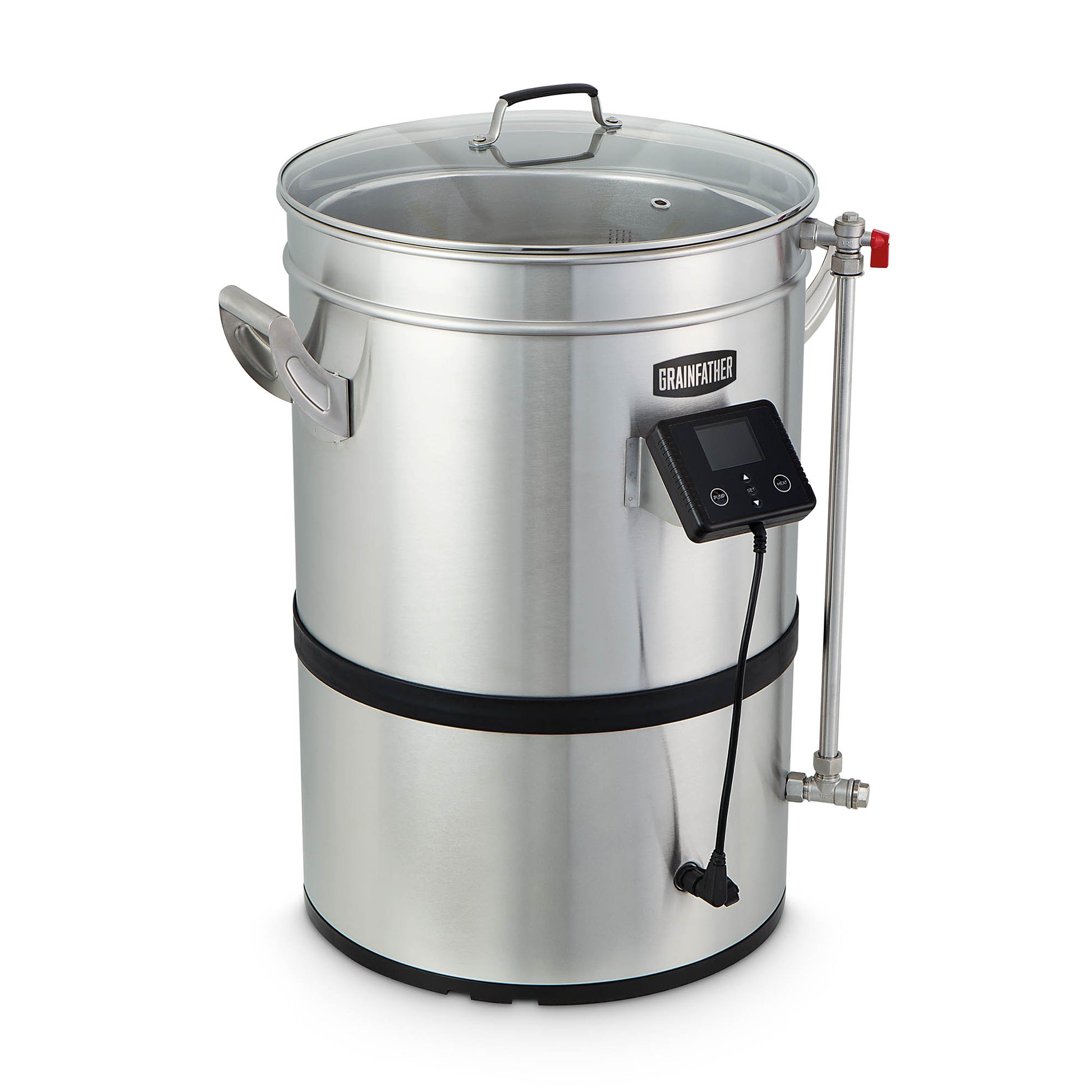

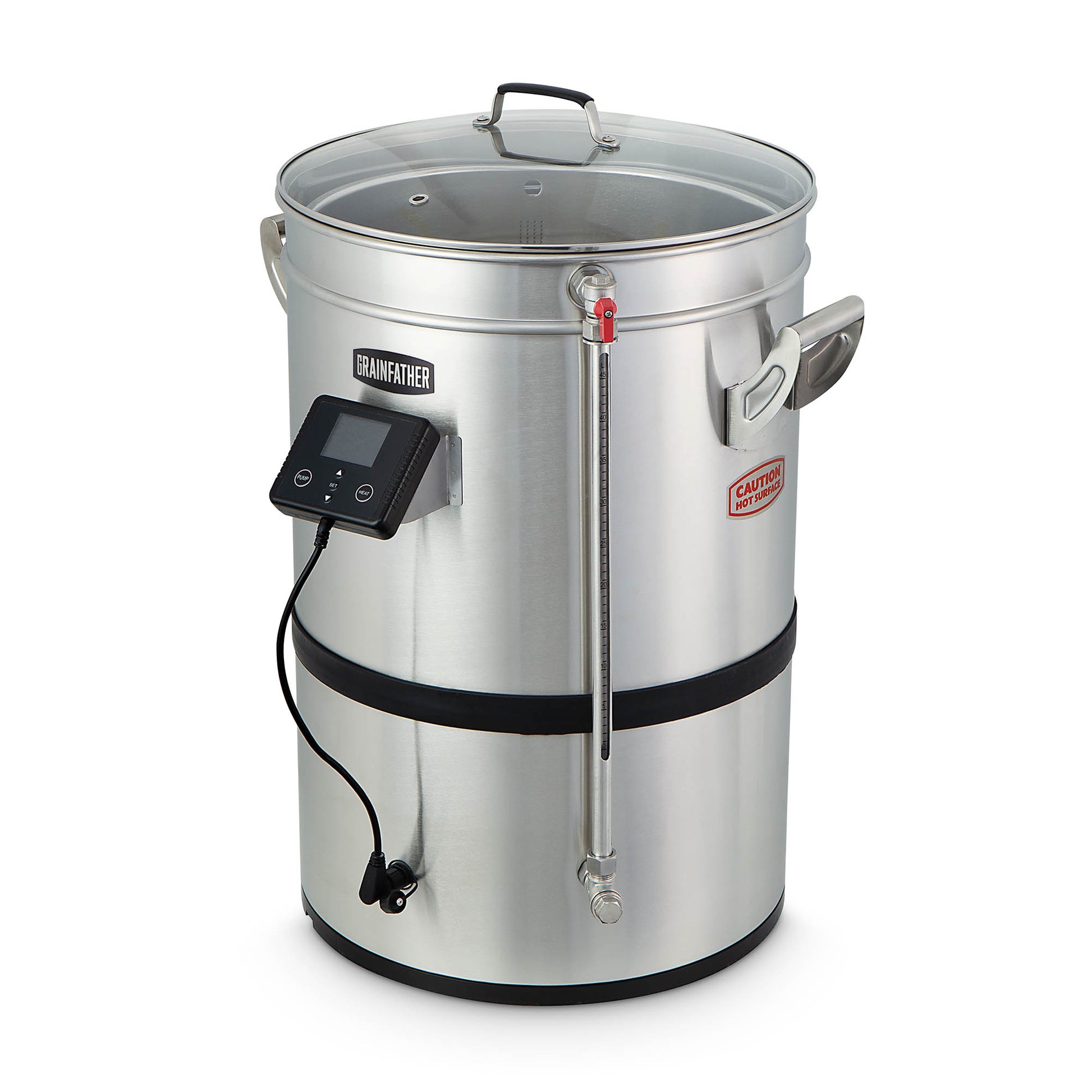

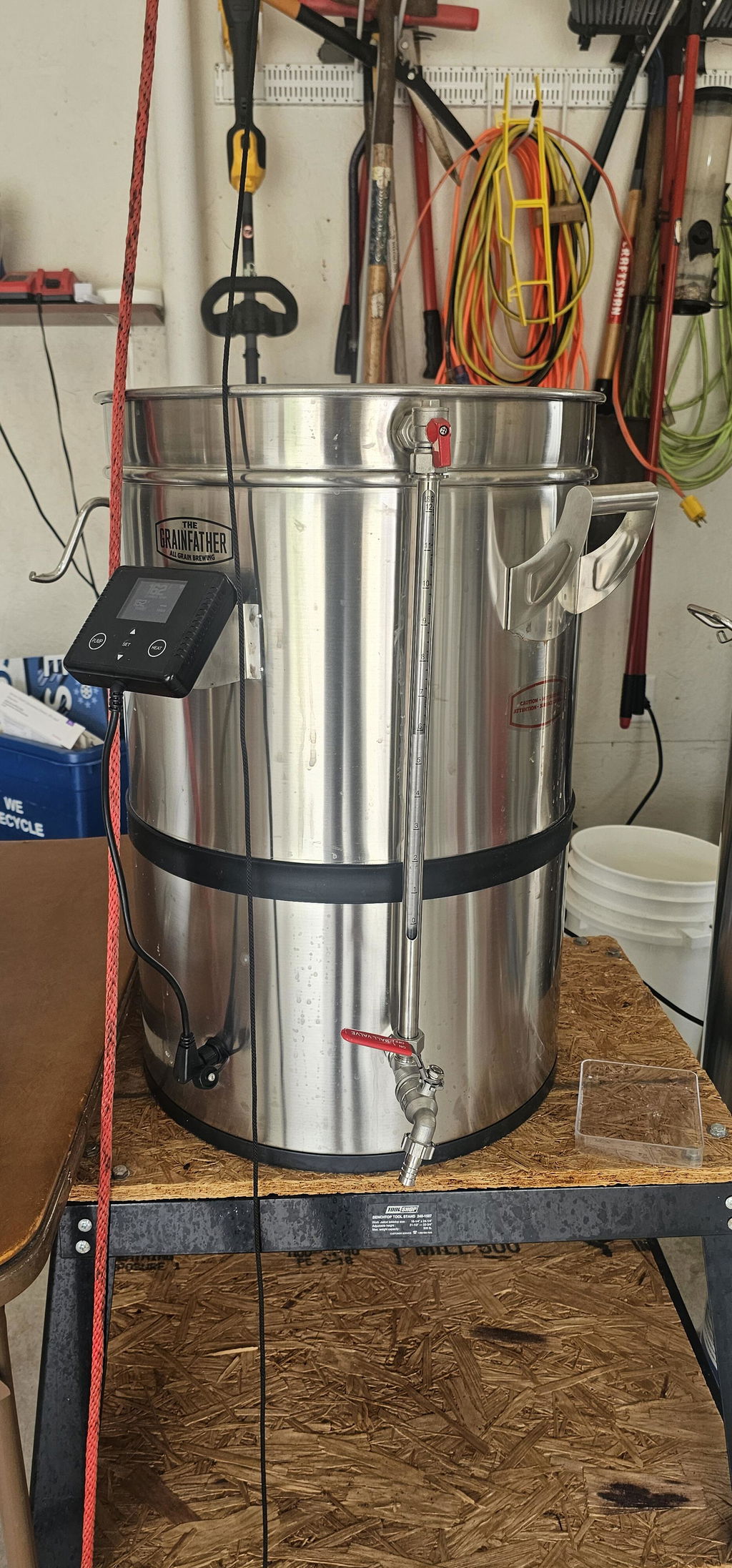

Grainfather G40 US

• Sleek 304 grade stainless steel body

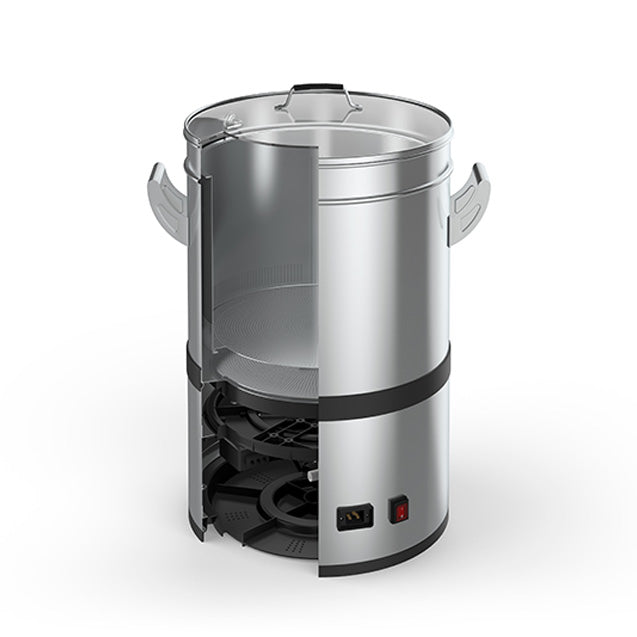

• Heats wort evenly with large, surface mounted heating elements
• Connect your mobile device to the smart wireless controller via the Grainfather App and manage your brew remotely
• Conical base for maximum wort transfer
• Efficient and sanitary brew transfer with the counterflow wort chiller
• PID heating control for accurate temperature management during mashing
• Quick and easy cleaning with CIP (clean in place) capability
• Integrated sight glass for easy volume reading
• Rolled edge mash plate and large hop filter to reduce blockages
• Backed by a 3-year warranty

SIZE:

• Unit Size: 725mm x 555mm (h x w)
• Packaged size: 730mm x 620mm x 575mm ( h x d x w)


WEIGHT:

• Unit Weight: 29kg (64lb)
• Packaged Weight: 35kg (76lb)

MAX PREBOIL VOLUME:

• 46L

BATCH VOLUME:

• Max: 40L
• Min: 10L

GRAIN BILL:

• Max: 12kg
• Min: 3kg

STAINLESS STEEL THICKNESS:

• Boiler: 0.8mm (0.03")
• Grain basket: 0.8mm (0.03")


POWER:

• US: 3300W, 230V,50Hz/60Hz


CONNECTIVITY:

• WiFi control

Counterflow Chiller:

• Copper inner coil
• Colour-coded hoses for inlet and outlet water.
• Red and Blue hose specification: ID: 8mm
  OD: 10mm 1.5m in length.
• 1m silicone hose- ID: 10mm ~ 3/8
  OD: 11.5-12.5
• Cooling performance- +5°C (+10°F) from cooling tap water temperature at a fl­ow rate of 3L (0.8 US Gal) -
  NOTE: The final wort temperature and cooling time will depend on the temperature of your local tap water.

PUMP SPEC:

Power: 22/25W

Heat rating: 105°C (221°F)

Max unit fl­ow rate:

16/19L (4.2/5 US Gal) per min

Voltage: 230V

Frequency: 50/60Hz

• Grainfather G40
• Wi-Fi controller
• Counterflow wort chiller
• Glass lid
• Lifting bar

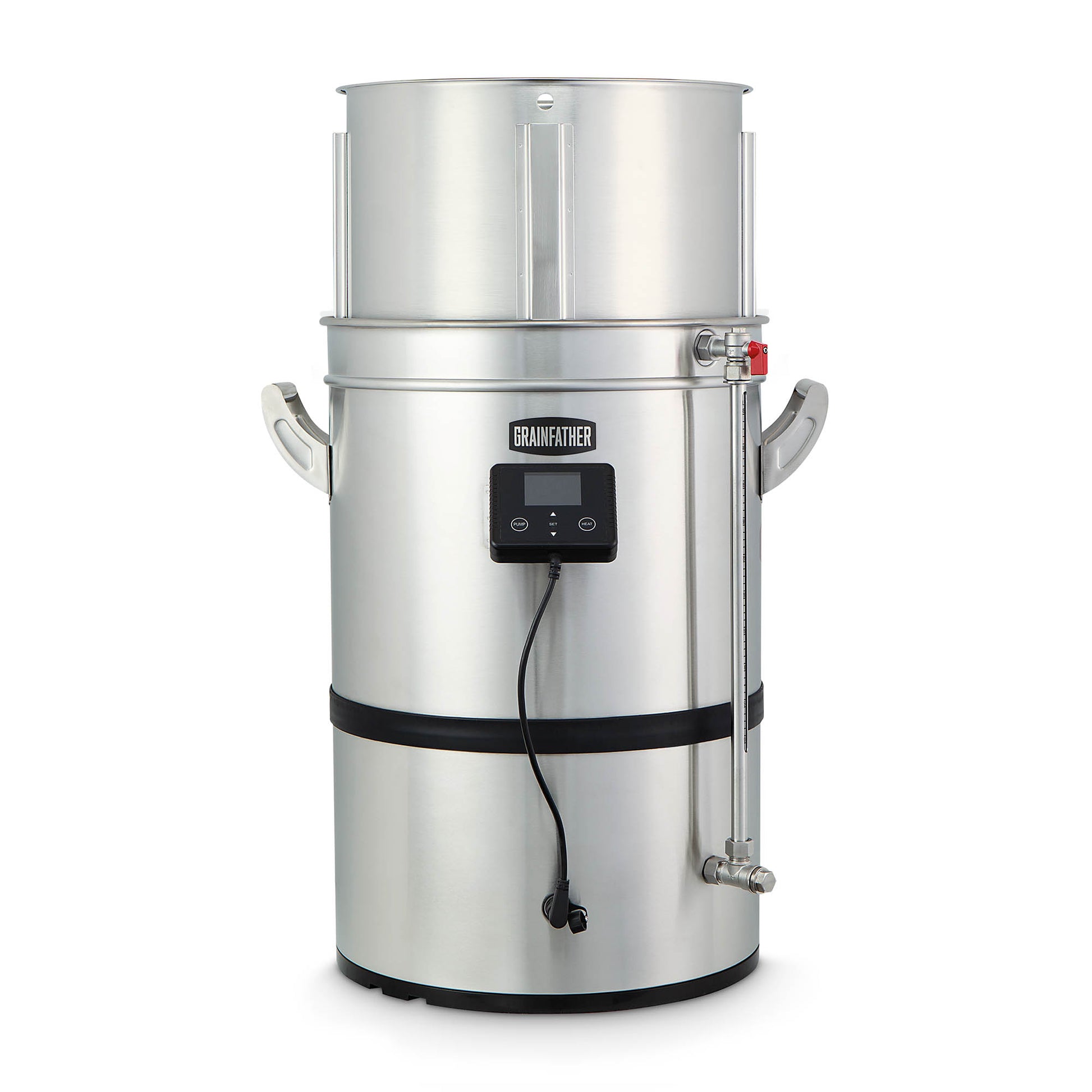

• Grain basket
• Recirculation hose
• Grain plates
• Hop filter
• Fittings
• Built-in pump
