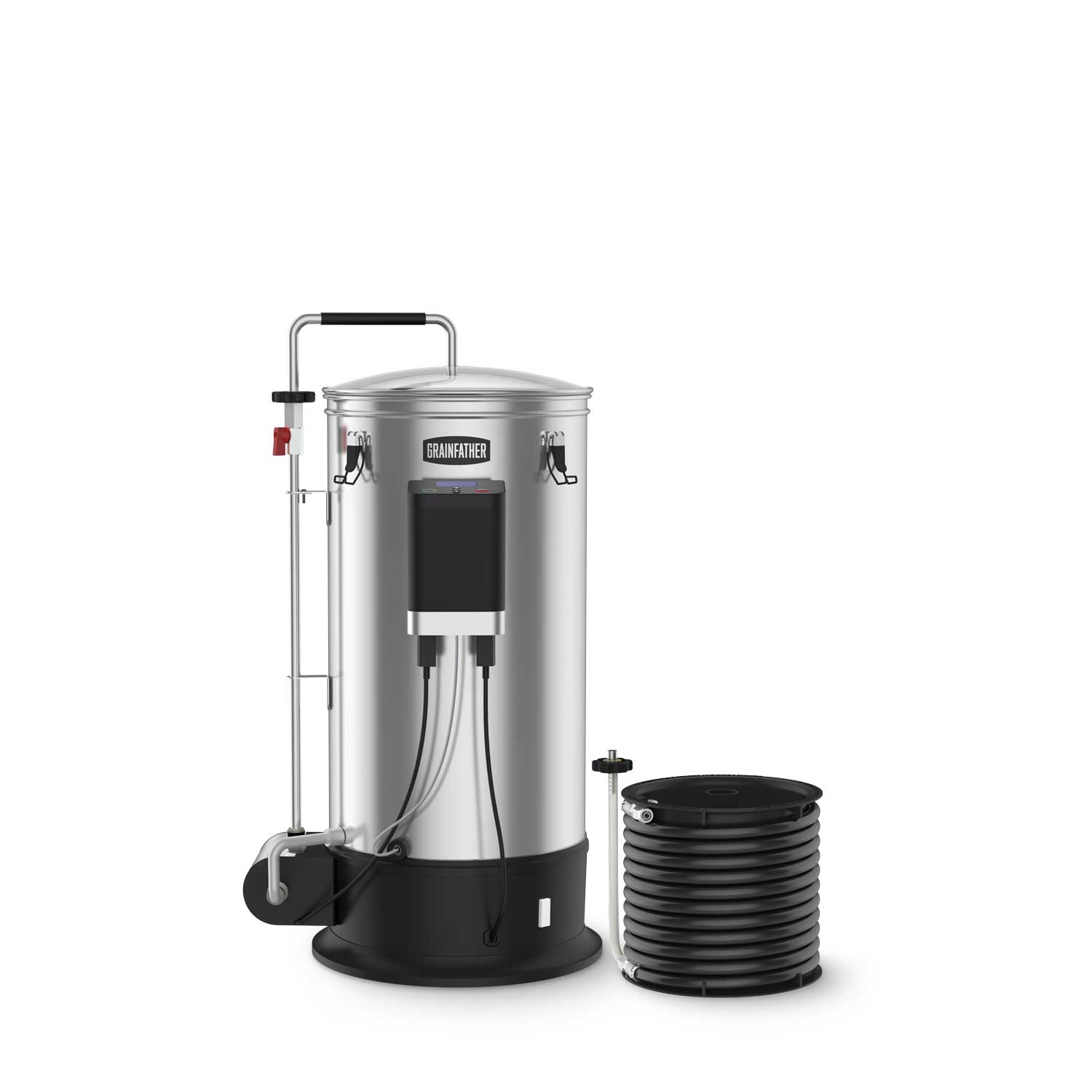

Grainfather G30v3 110V + Counterflow Chiller (US/CA)

G30v3:

• Sleek 304 grade stainless steel body
• Manage your brew day from your mobile device via Bluetooth using the Grainfather App
• Get a more reliable connection between your G30v3 controller and the Grainfather App on your smartphone with the GCAST Bluetooth Wi-Fi Bridge (available separately)
• A robust magnetic drive pump for maximum brewing efficiencies

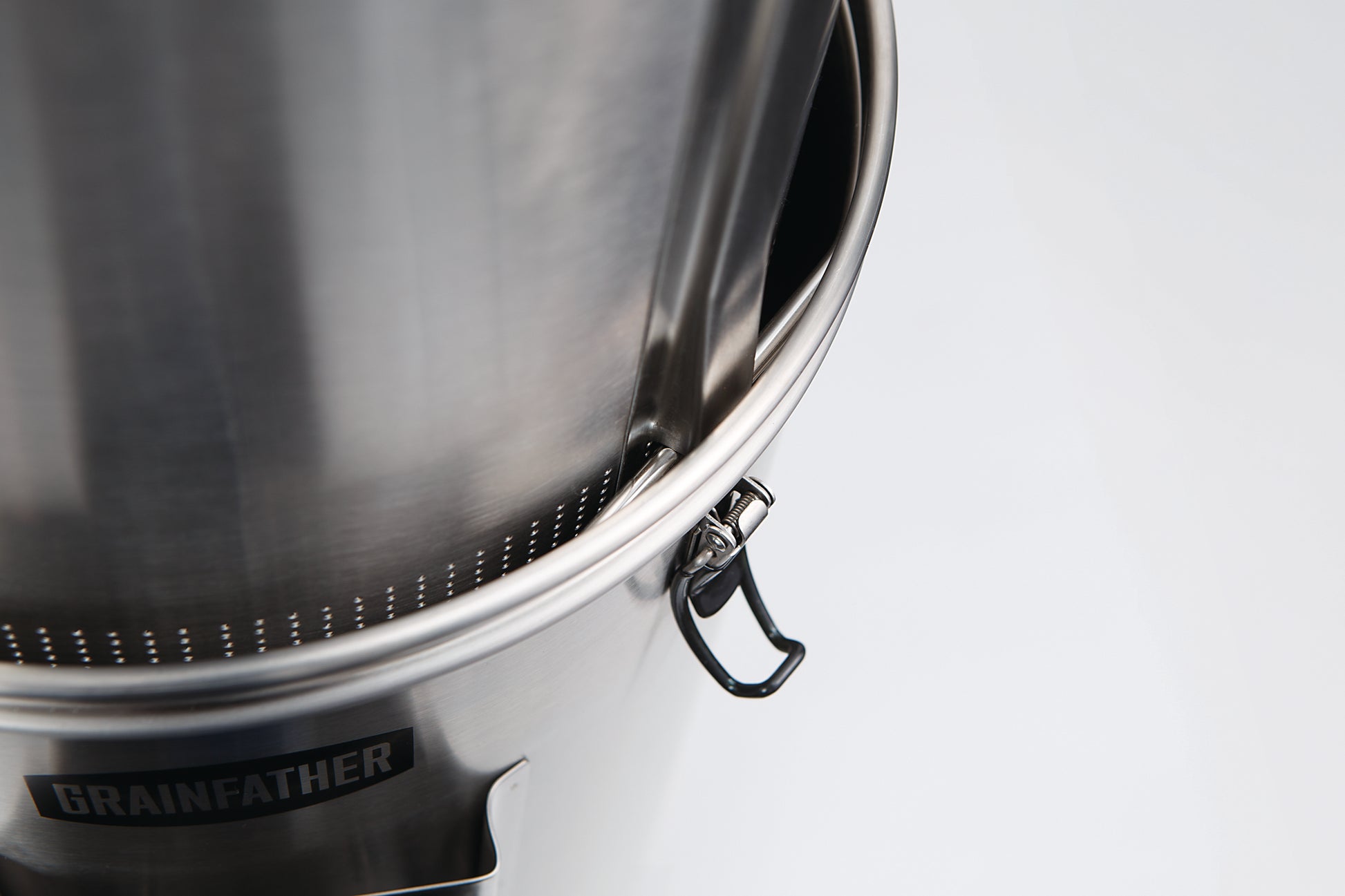

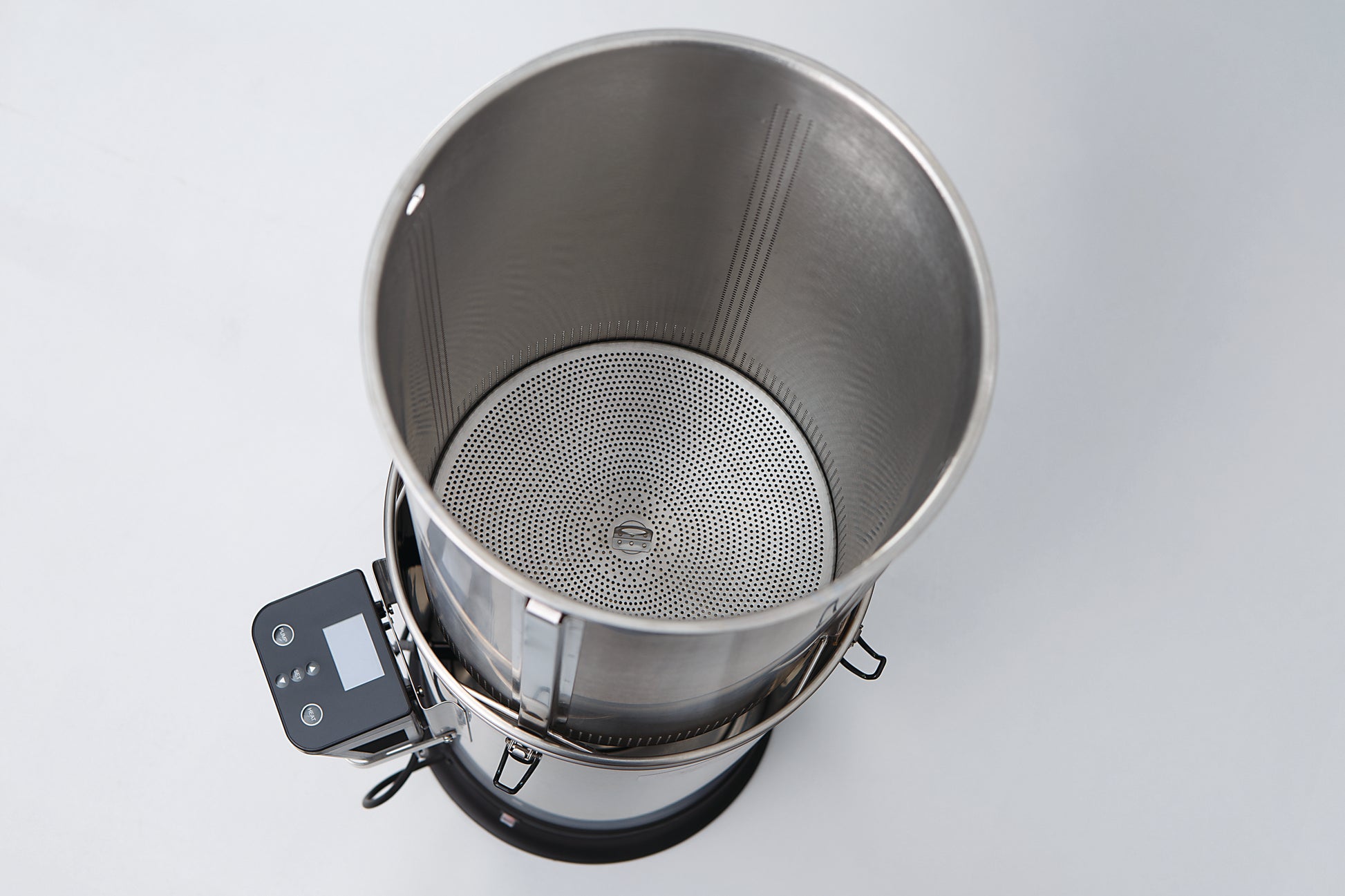

• Perforated grain basket negates the need for a top plate or additional pipework
• Auto reset switch avoids the need to get underneath the unit should an unexpected trip occur
• Efficient and sanitary brew transfer with the Counterflow Chiller (available separately)
• Unlock distilling capabilities with the Still Spirits Alembic Dome & Condenser (available separately)
• Backed by a 3-year warranty

Counterflow Chiller:

• One step transferring and cooling
• Fast cooling time to within 3C of source water temperature.
• More sanitary transferring
• Copper inner coil for high heat exchange
• Compatible with a range of brewing systems

G30v3:

SIZE:

• Unit Size- 685 x 386mm (27 x 15’’)
• Packaged Size- 460 x 490 x 760 mm
• Diameter- Inside to Inside- 295mm. Outer lip to Outer Lip- 310 mm


WEIGHT:

• Unit Weight- 14.6kg (32lb)
• Packaged Weight- 21kg

STAINLESS STEEL THICKNESS:

• Boiler:0.5mm (0.02")
• Grain Basket 0.6mm (0.02")

MAX PREBOIL VOLUME:

• 30L (8 US Gal)

BATCH VOLUME:

• Max: 25L (7 US Gal)
• Min: 10L (3 US Gal)

GRAIN BILL:

• Max: 8kg (18lb)
• Min: 1.5kg (3.3lb)

*9kg (20lb) with top plate

POWER:

• US - 1600W, 120V, 60Hz

CONNECTIVITY:

• Bluetooth Control only as standard
• Upgrade to Wi-Fi compatibility by pairing with our GCAST.

Counterflow Chiller:

• Copper inner coil
• Colour-coded hoses for inlet and outlet water.
• Red and Blue hose specification: ID: 8mm
  OD: 10mm 1.5m in length.
• 1m silicone hose- ID: 10mm ~ 3/8
  OD: 11.5-12.5
• Cooling performance- +5°C (+10°F) from cooling tap water temperature at a fl­ow rate of 3 L (0.8 US Gal) per min.


PUMP US:

• Power: 6W
• Heat rating: 212°F
• Max unit ­ow rate: 3 US Gal/min
• Voltage: 110V
• Frequency: 60Hz

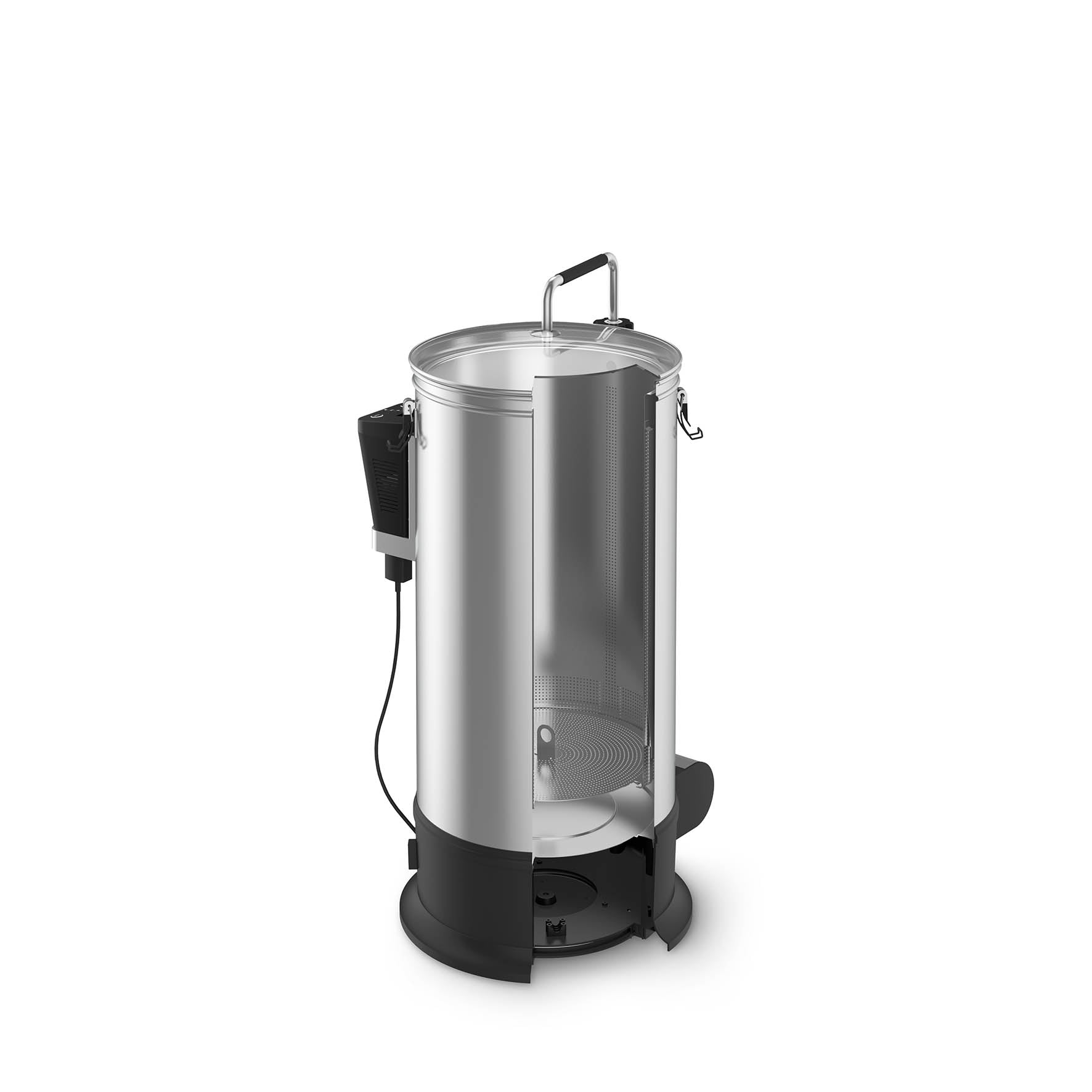

Grainfather G30v3

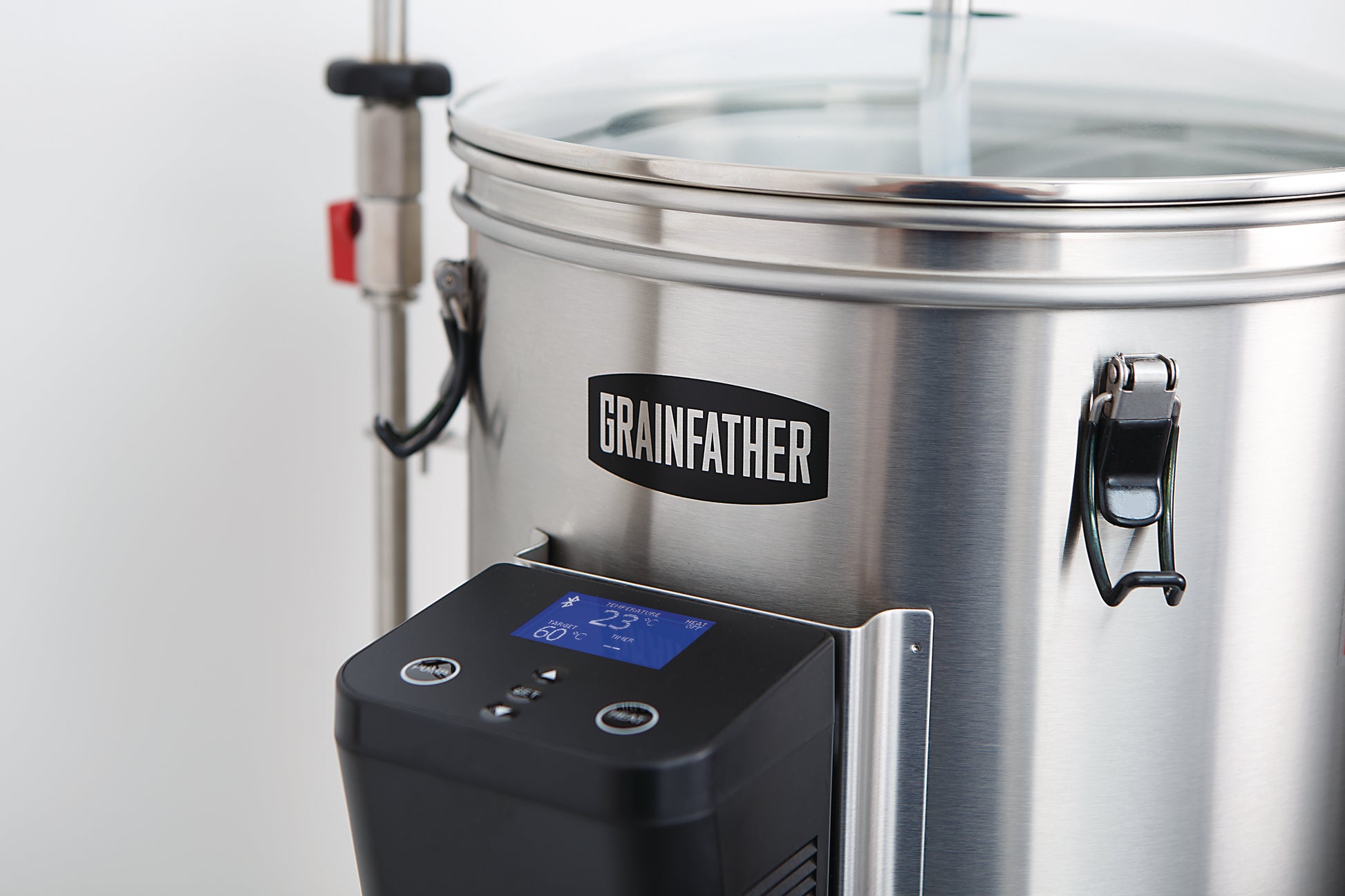

• Bluetooth controller

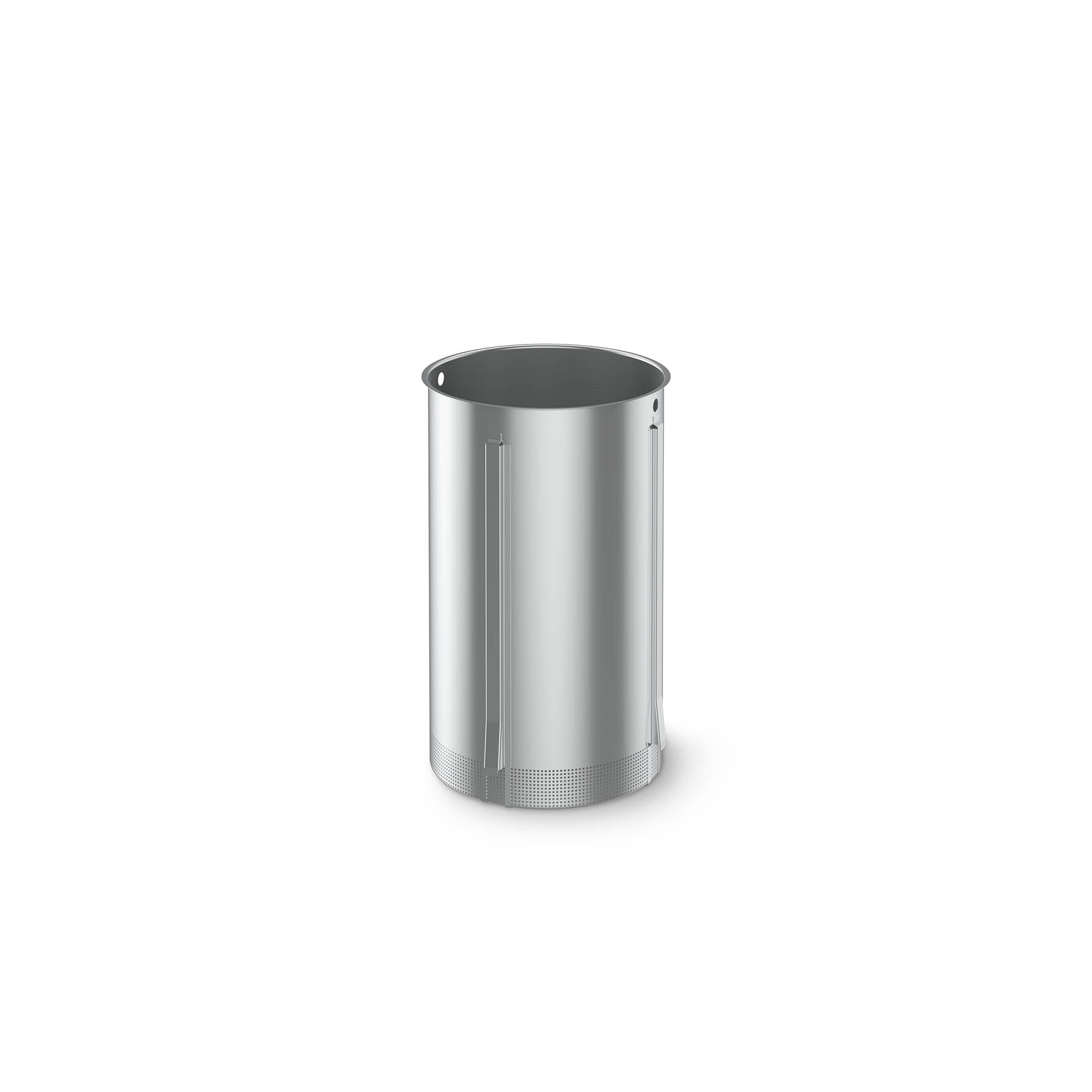

• NEW perforated grain basket
• Grain plate
• Lifting bar

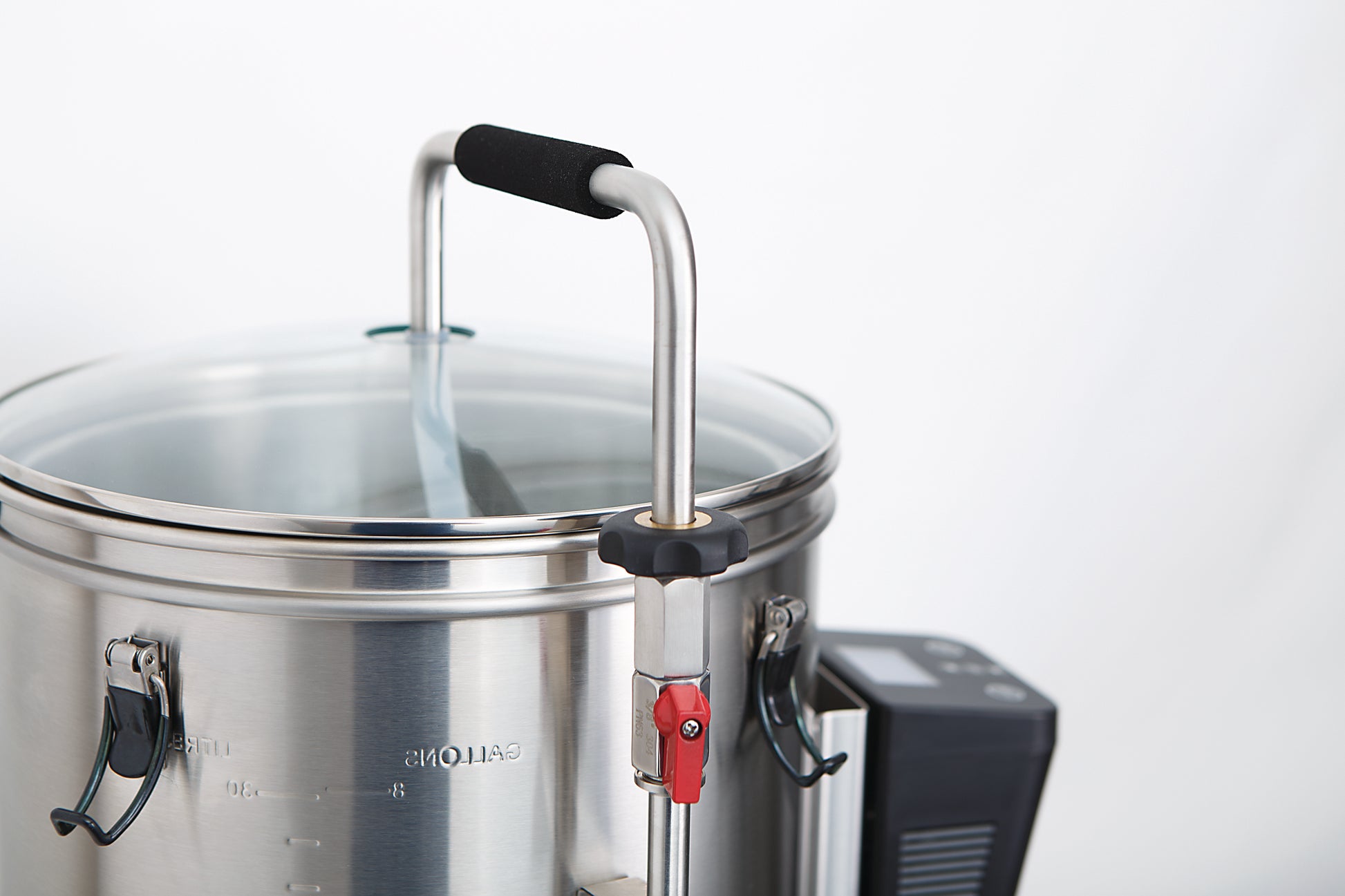

• Glass lid

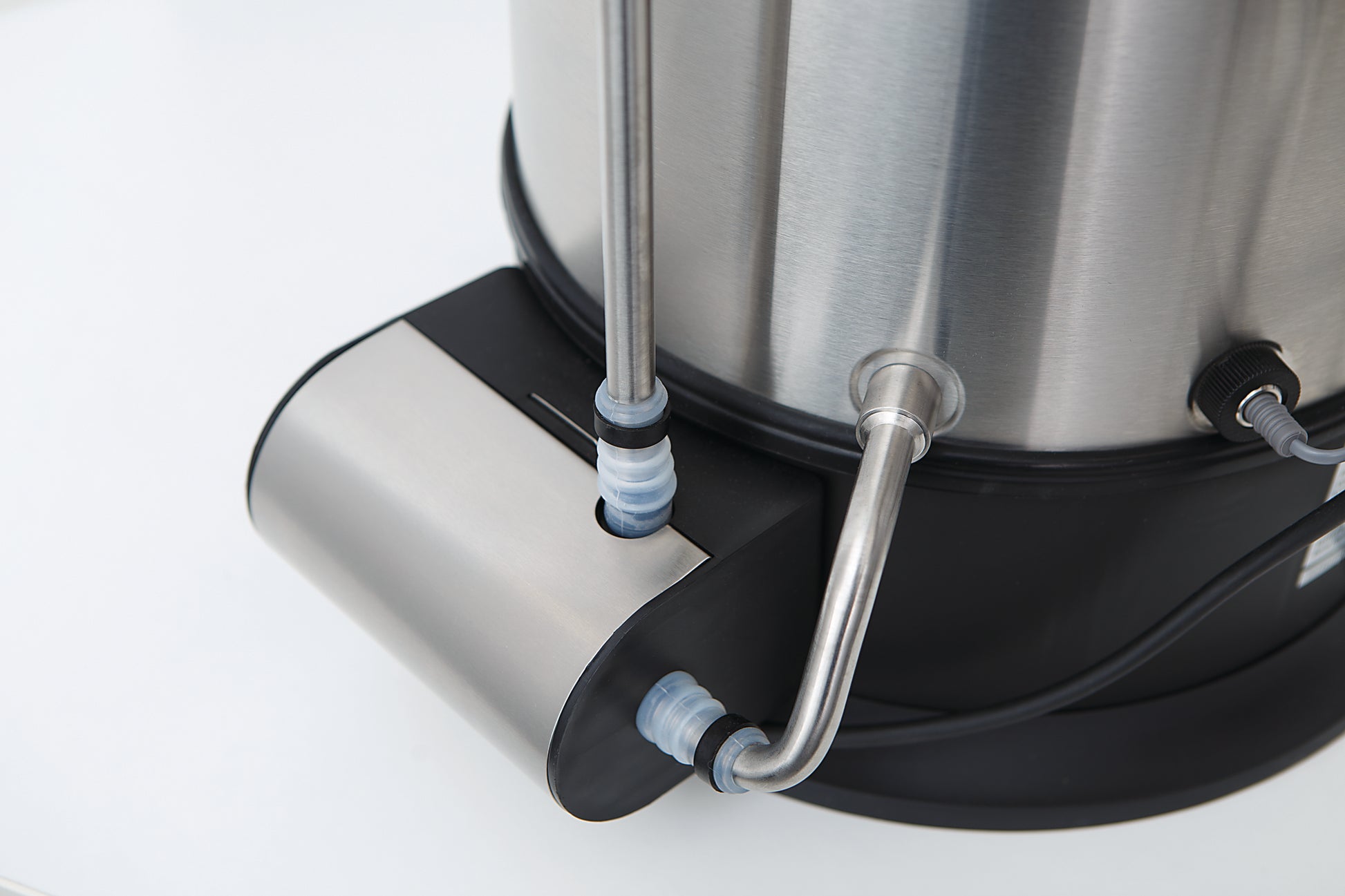

• Recirculation pipe

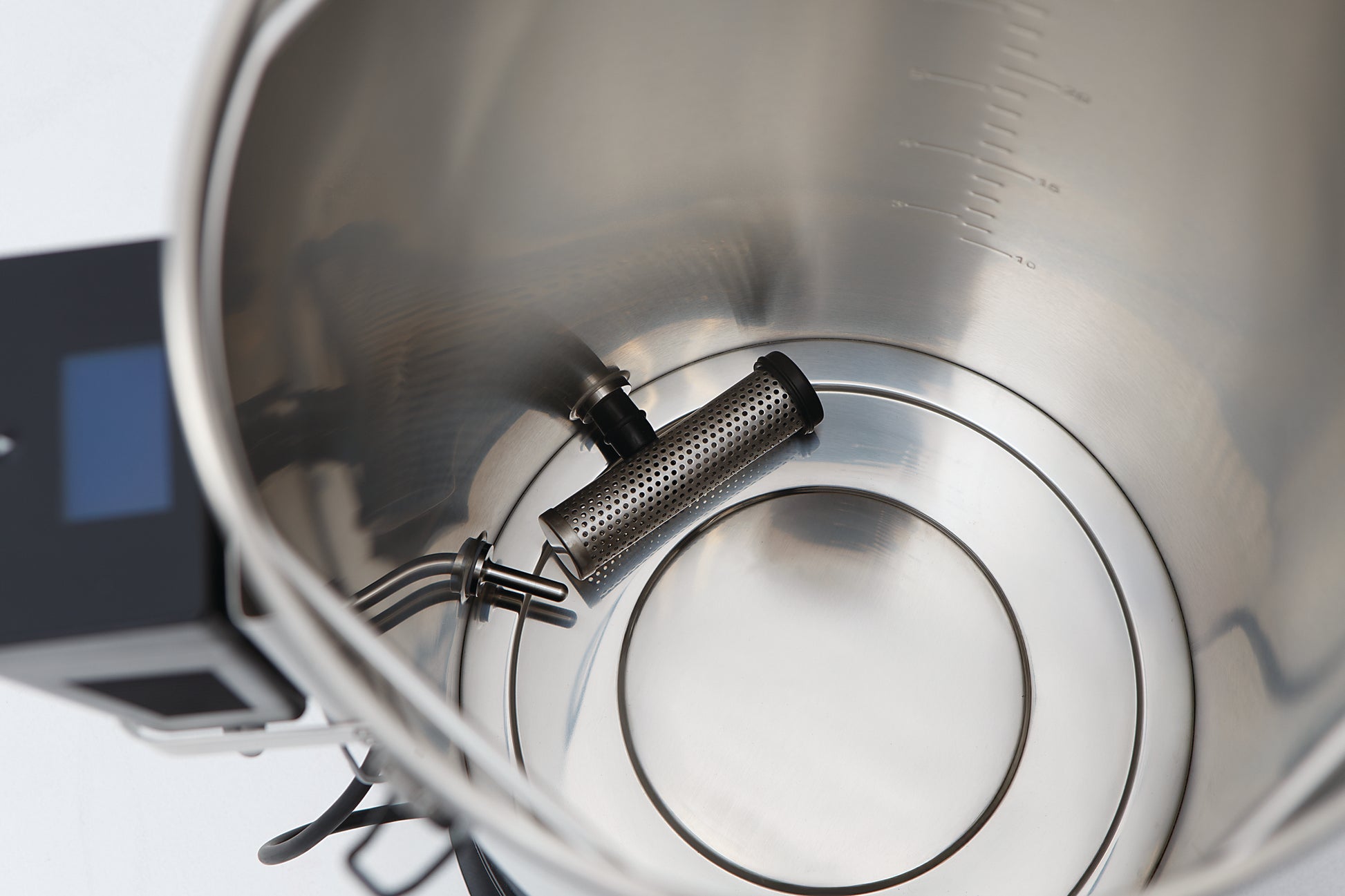

• Filter
• Hose fittings
• Built-in pump

Counterflow Chiller

• Water inlet and outlet hosing
• Wort inlet and outlet hosing
• G30 connector
• 9mm right angle hose barb connector for G40, G70 and other brew systems
• Tap adapter set for connection to garden hoses and most faucets
