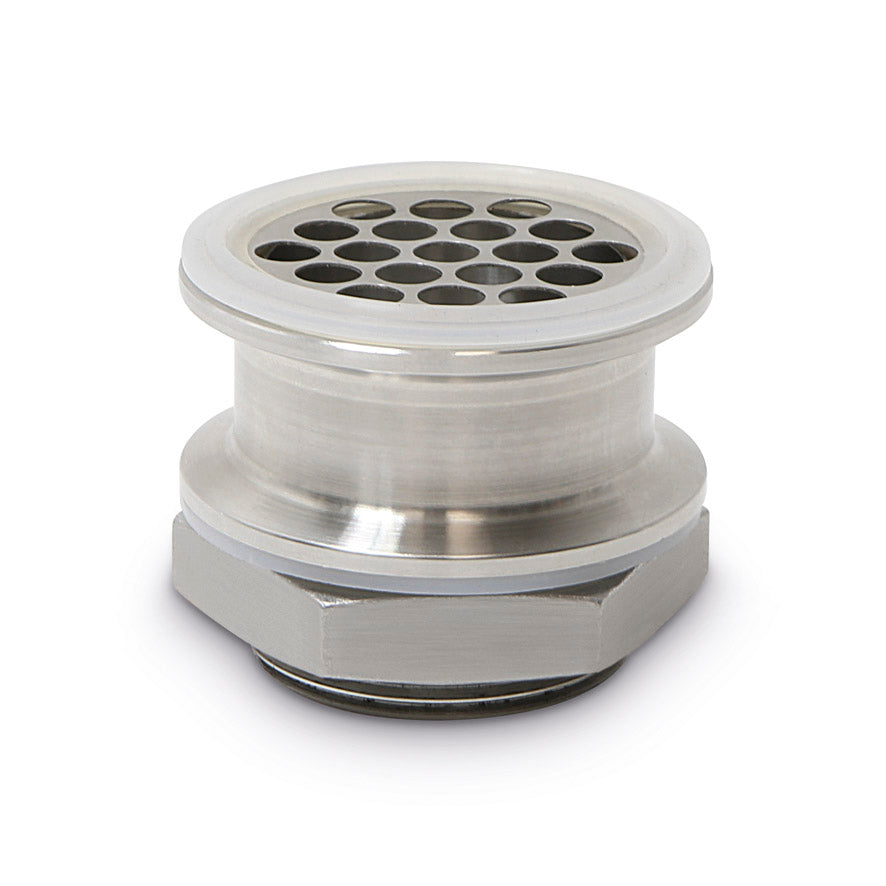

Still Spirits Create+ Threaded Adapter Set

Convert from DN40 (or 1 ½ "BSPP) threaded connection to 2" tri-clamp connection.

Connect to 2" tri-clamp distilling accessories304 grade stainless steel construction

High temperature resistant food grade silicone

Dimensions: 80mm x 80mm x 65mm

Weight: ~400g Approx.

NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

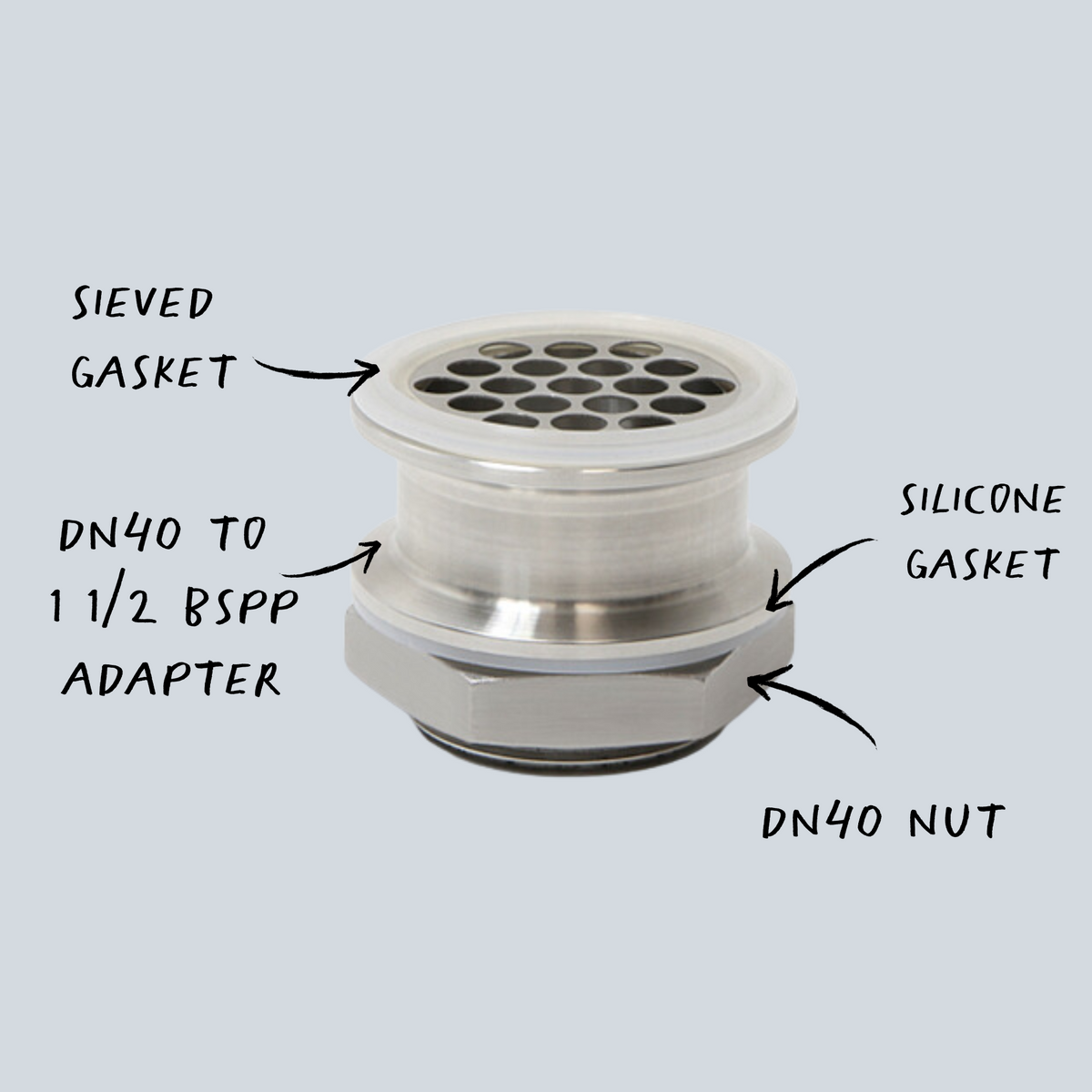

• DN40 Nut
• Sieved Gasket
• Silicone Gasket
• 2" Tri-Clamp to DN40 Threaded Adapter
